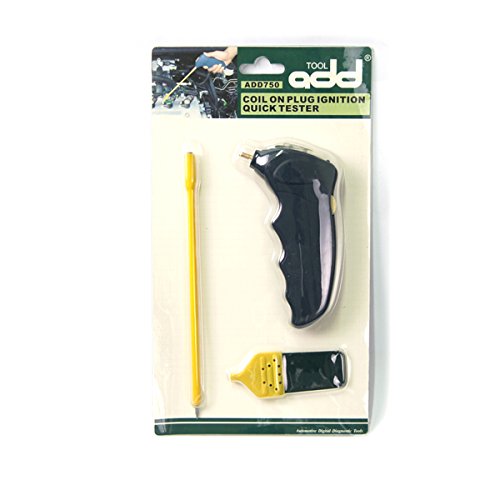

ADD-ADD750 COP IGNITION QUICK TESTER

Item Type: Ignition Coil Tester

Material: ABS

Battery: CR2032 button battery, 120mAh (built-in)

How to Use:

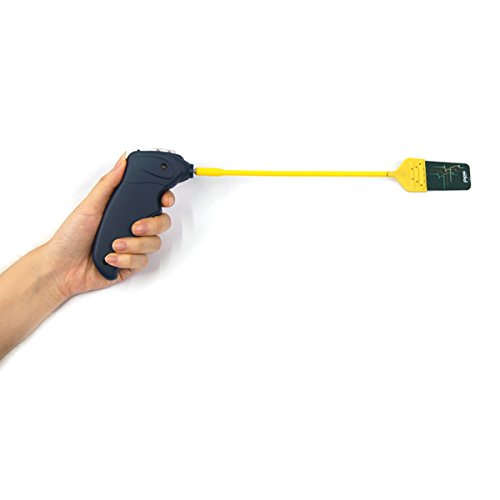

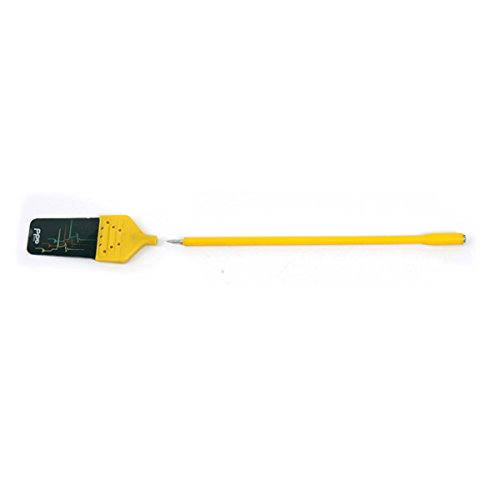

1. Correctly connect the connector and sensor head to the tester

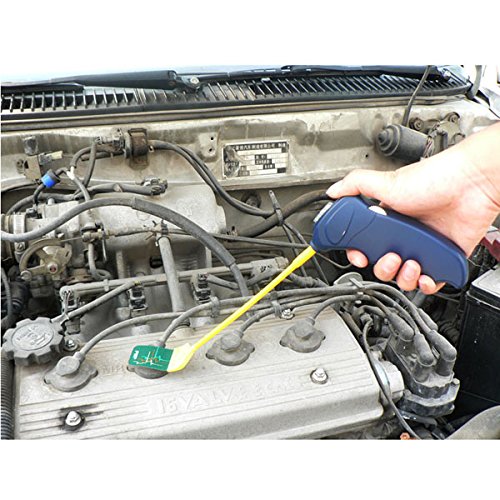

2. The induction head is aligned with the ignition coil to start working, and the working status of the ignition coil is judged according to the result of lighting

Test Results:

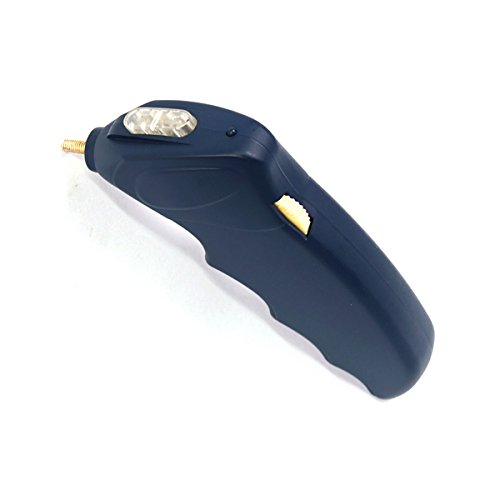

Red LED Light

Consistent, steady flashing and beeping indicates the COP is producing the correct amount of voltage.

No response or an inconsistent response indicates the COP is NOT producing the correct amount of voltage.

This may be caused by one of the following:

1.Fouled , or incorrect gaps

2.Damaged/corroded wires or connectors

3.Faulty coil or PCM

Green LED light

Consistent and steady flashing indicates the duration of the arc is correct.

No response or an inconsistent response indicates the duration of the arc is NOT correct.

This may be caused by one of the following:

1.Shorted windings inside the coil

2. Resistance or bad connections in the

3. primary / secondary connections

4. Faulty coil
